Hydraulic Seals for Injection Molding Machines

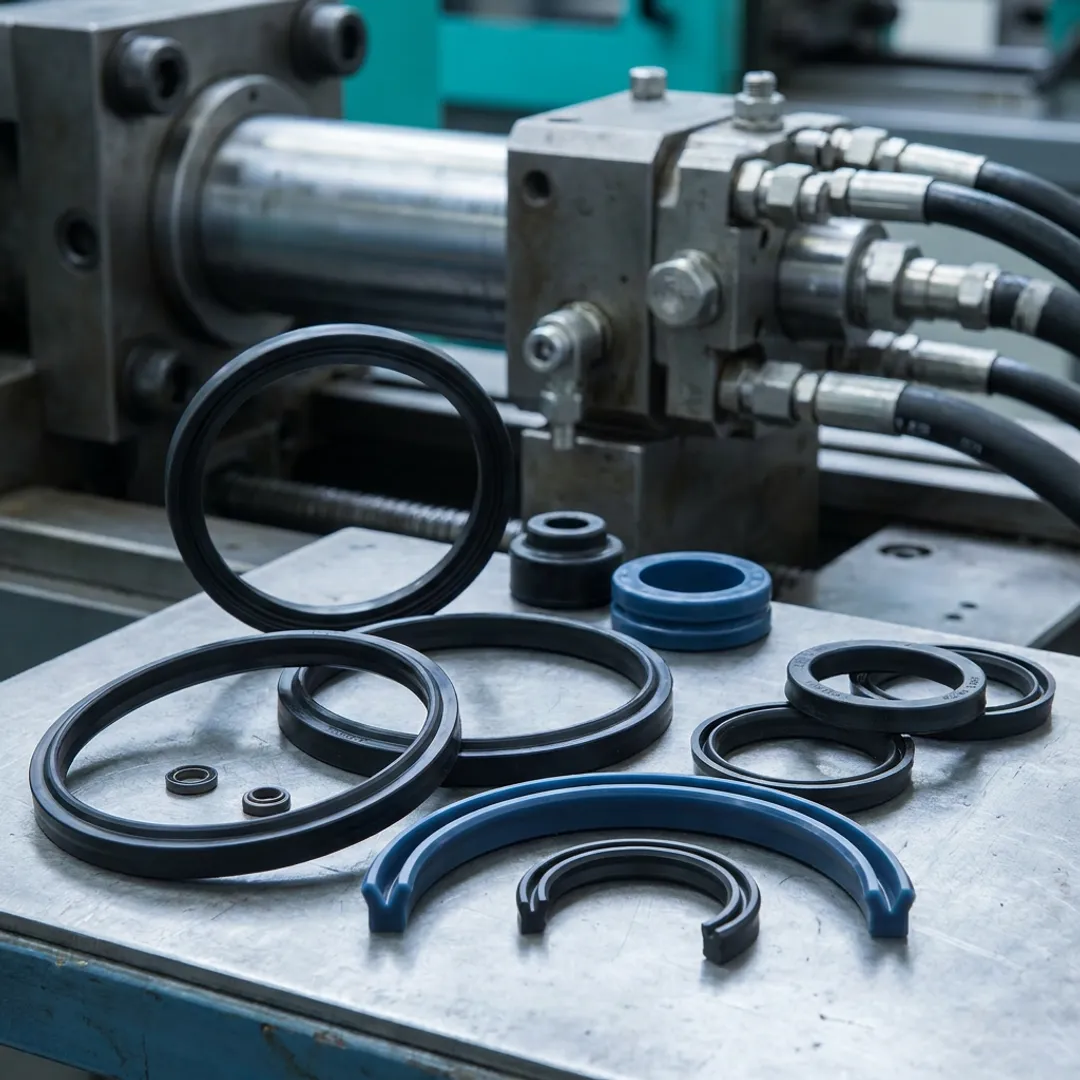

Injection molding machines commonly use hydraulic seals such as rod seals, piston seals, wiper seals, O-rings, back-up rings, oil seals, and custom molded sealing components. These parts help control hydraulic pressure, prevent fluid leakage, protect cylinders from contamination, and support smooth motion in clamps, injection units, ejectors, and other hydraulic assemblies.

Material selection should consider hydraulic fluid type, operating pressure, temperature range, stroke speed, wear conditions, and chemical exposure. Detroit Sealing Components offers access to compounds including NBR, FKM, HNBR, EPDM, silicone, polyurethane, and FFKM. When standard materials are not sufficient, DSC can help develop and test custom compounds through its ISO 17025 accredited lab.

Yes. DSC supports custom sealing solutions when standard parts do not match the equipment geometry or operating conditions. Customer design parameters can be evaluated using computer-aided design, finite element analysis, material selection expertise, and bench testing under customer conditions to confirm viability before moving into tooling or supply.

O-rings are widely used, but higher pressure applications may require back-up rings to prevent extrusion into the gland clearance. Back-up rings are made from higher hardness materials and help raise the pressure capability of standard O-rings while preserving compact sealing designs. Proper gland dimensions, tolerances, and material selection remain essential.

Common causes include excessive pressure, incompatible fluids, heat, improper installation, worn glands, extrusion, contamination, poor surface finish, and incorrect material selection. In production environments, seal failure can create leaks, inconsistent machine movement, downtime, and premature component wear. Reviewing application conditions before replacement helps improve seal life.

Detroit Sealing Components offers both standard and custom options. Its O-ring range includes standardized sizes aligned with specifications such as AS 568, BS 4518, JIS B2401, metric sizes, and others. DSC also provides custom geometries, molded rubber shapes, gaskets, packings, and engineered sealing solutions based on customer requirements.

Yes. Custom designs can be bench-tested under customer conditions to help confirm product viability. DSC also has an ISO 17025 accredited lab for custom material development and testing when existing compounds do not meet requirements. Testing can support better decisions around compound selection, durability, and application-specific performance.

Availability depends on whether the seal is a stocked standard component, a tooled article, or a custom-developed part. DSC’s stocking warehouse and distributor model is built around swift, cost-effective delivery, with extensive standard and tooled products available. Custom designs may require additional time for engineering review, material selection, tooling, and testing.
