Black Rubber Seals for Weatherproofing and Durability

Common rubber seal types include O-rings, X-rings, V-seals, T-seals, S-seals, FS-seals, gaskets, packings, packer elements, hydraulic seals, pneumatic seals, and metal-bonded rubber seals. Each configuration is designed for specific operating conditions — static or dynamic, rotary or reciprocating — and is available in compounds like NBR, FKM, EPDM, HNBR, and silicone to suit temperature, pressure, and chemical exposure requirements.

EPDM is widely considered the best rubber material for outdoor weatherproofing due to its excellent resistance to UV radiation, ozone, and weathering. It performs reliably across a temperature range of -55°C to 125°C. For applications also involving oils or fuels, FKM (Viton) offers superior chemical resistance along with good weathering performance, though at a higher cost.

Temperature capability depends on the compound. NBR seals operate from -40°C to 100°C, EPDM from -55°C to 125°C, FKM/Viton from -26°C to 250°C, VMQ (silicone) from -60°C to 225°C, and HNBR from approximately -30°C to 165°C. For extreme environments above 200°C, FFKM and FEPM materials are available for applications such as downhole oil and gas operations.

Yes. Detroit Sealing Components offers custom-engineered seals in virtually any configuration. The Infinite Size O-Ring product line supports unlimited inner diameters via continuous molding. Metal-bonded seals are available from 10mm to 320mm, and gaskets and packings can be designed to specific geometries. Custom tooling, design consultation, and CAD/FEA support are all available for non-standard sealing requirements.

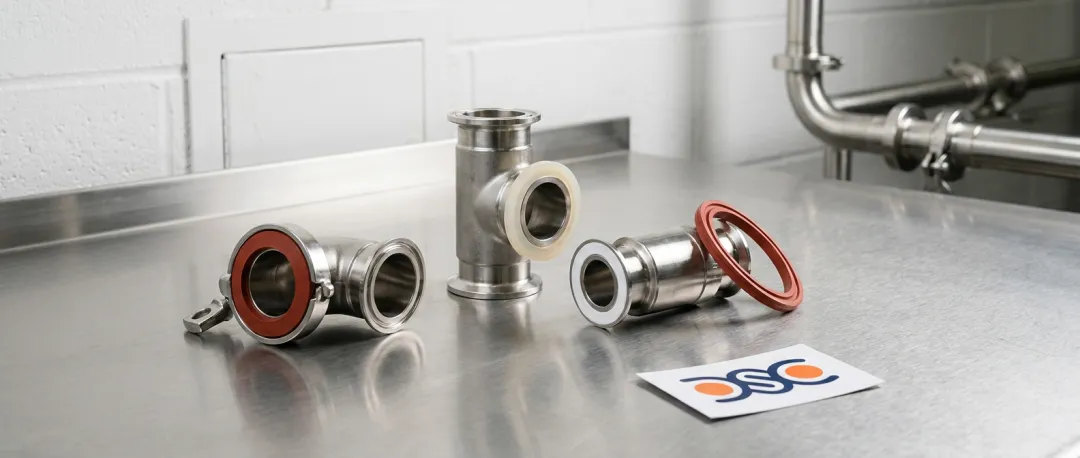

For food, beverage, and drinking water contact, seals must comply with regulatory standards such as FDA CFR 177.2600, NSF 61, NSF 42, WRAS, and W270. Approved materials typically include EPDM, FKM, and VMQ (silicone). Detroit Sealing Components offers a dedicated Sanitary & Drinking Water Seal product line certified to these international standards for safe contact with potable water and food-grade media.

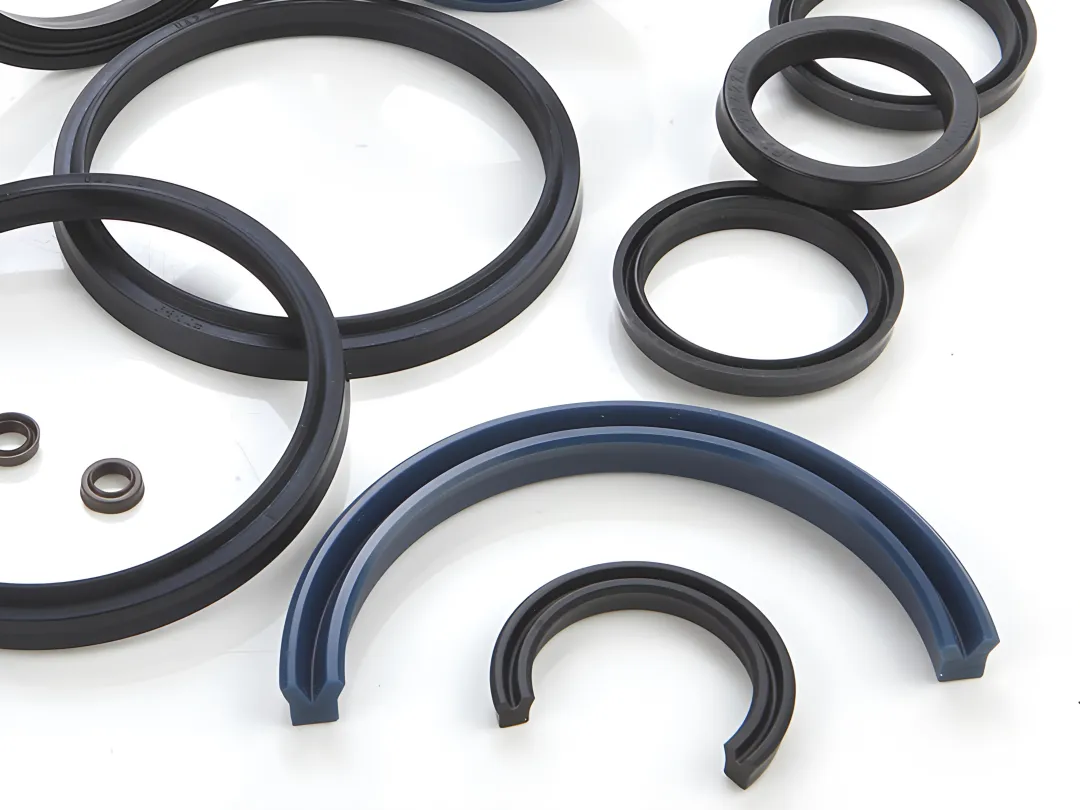

Static seals are used between surfaces with no relative movement, such as flanges and pipe joints, where compression alone maintains the seal. Dynamic seals are designed for applications involving movement — reciprocating, rotary, or oscillating — such as hydraulic cylinders and pneumatic valves. Dynamic seals require materials and geometries engineered for wear resistance and low friction, such as X-rings, V-seals, and hydraulic rod and piston seals.
