Air Tight Seals for Industrial Applications - High Performance

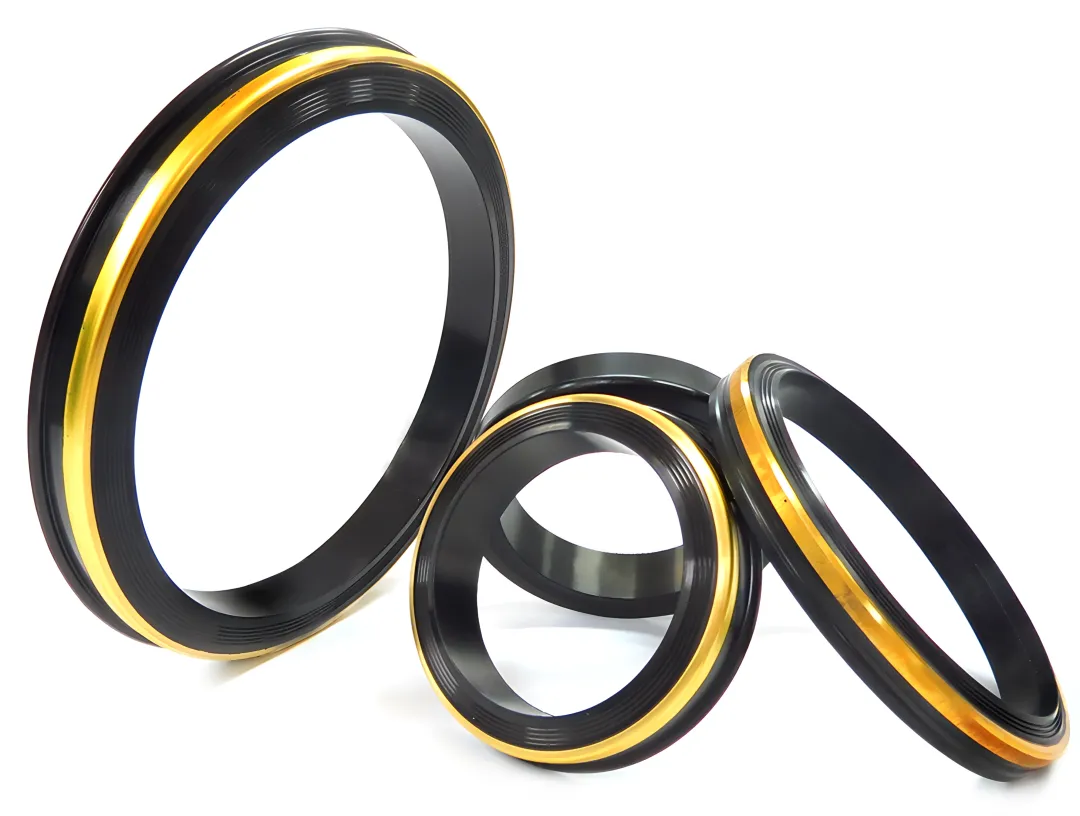

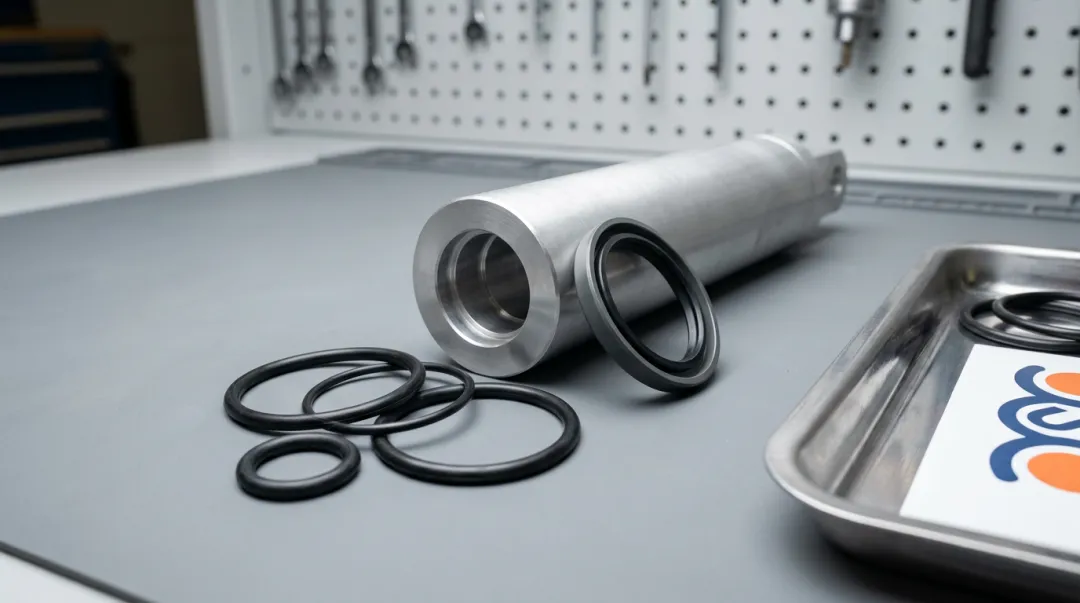

Airtight seals in industrial contexts go by many names depending on their geometry and function. Common types include O-rings, X-rings, V-seals, T-seals, gaskets, and diaphragms. Specialized variants like FS-Seals and S-Seals are used in oil & gas environments, while metal-bonded rubber seals serve structural sealing in automotive and aerospace applications requiring zero-leakage performance.

Creating an airtight seal requires selecting the correct elastomer material, seal geometry, and groove or gland dimensions for the application. Key steps include matching the seal compound to chemical exposure and temperature range, ensuring correct compression or squeeze, and using back-up rings in high-pressure scenarios to prevent extrusion. Custom engineering support ensures optimal seal design for complex or non-standard applications.

An air seal works by deforming elastomeric material against a mating surface to close off any gap through which air or fluid could escape. When compressed into a gland or groove, seals like O-rings generate a contact stress that exceeds the internal pressure, maintaining a leak-free barrier. Dynamic seals accommodate shaft or piston movement while maintaining continuous contact force and sealing integrity.

Detroit Sealing Components offers NBR, FKM/Viton, EPDM, HNBR, Silicone (VMQ), FEPM, FFKM, and thermoplastic elastomers such as Santoprene and Hytrel. Each compound is chosen for its chemical compatibility, temperature performance, and hardness range — from 40 to 90 Shore A — to match the specific demands of the application environment.

Industrial airtight seals are available for a wide range of operating temperatures. Standard NBR seals handle -40°C to 100°C, EPDM up to 125°C, FKM/Viton from -26°C to 250°C, VMQ/Silicone from -60°C to 225°C, and FFKM compounds for extreme conditions above 200°C. Material selection should be matched to continuous operating temperature, not just peak values.

Yes. Detroit Sealing Components provides full custom engineering services including CAD design, finite element analysis, and prototype development. Products such as Infinite Size O-Rings, metal-bonded rubber seals, hydraulic seals, and gaskets can be designed to non-standard dimensions. The ISO 17025 accredited lab supports custom compound development and validation testing for unique application requirements.
