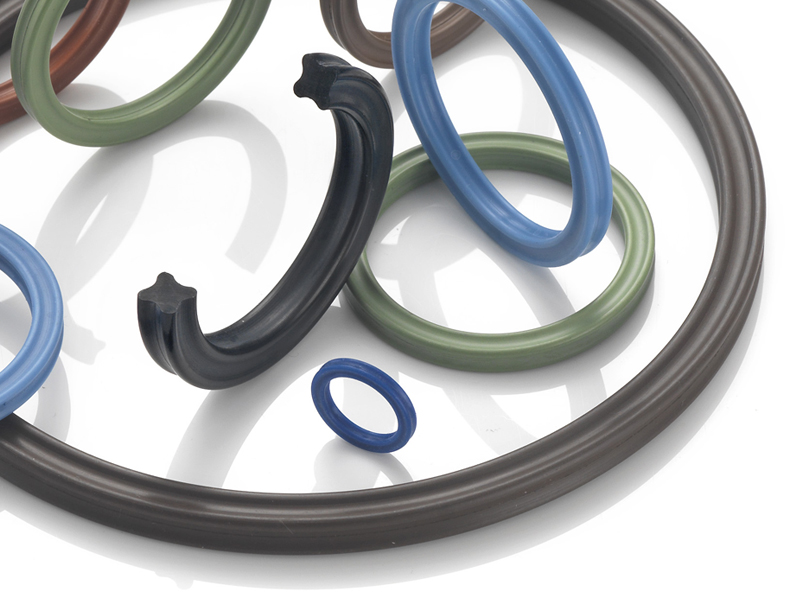

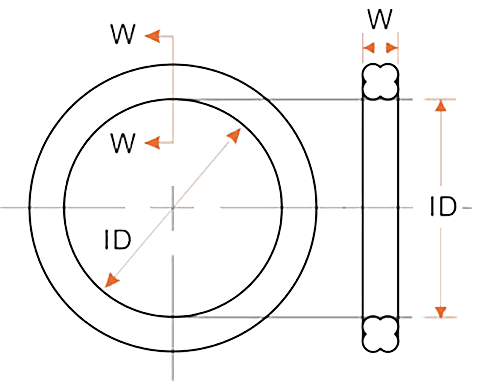

X-rings have a unique 4-lobed cross section and can generally be used in place of O-rings to offer an enhanced ability to perform in some dynamic applications, both rotary and reciprocating

They offer cross sectional stability in the gland, resisting twist in reciprocating applications and clustering in rotary applications

The design offers additional sealing surfaces compared to a standard O-ring and allows for lower sealing forces to provide effective sealing, thus enabling lower friction in the installation process and in the application.

Tooled in all AS568 gland sizes for both FKM and NBR materials, however they can be custom sized for alternate housing dimensions
